Moldex3D Co-Injection

Moldex3D Co-Injection offers modeling solutions to estimate shrinkage and warpage during the interaction between skin and core materials. It helps detect potential defective locations with high temperatures and stress. You also gain insight into critical characteristics of the process, including material interface and distribution.

Capabilities

  • Evaluates the flow front pattern to help in part design and gate placement
  • Predicts the penetration of the core material and skin breakthrough point
  • Determines the best injection pressure and clamping force for proper molding machine selection
  • Optimizes the switch point from skin injection to core injection
  • Provides skin thickness distribution for advanced structural analyses
  • Detects potential defective locations with high temperature and stress
  • Estimates shrinkage and warpage concerning the interaction between skin and core materials for spec requirement

The Purpose of Moldex3D Co-Injection’s Molding Simulations

The co-injection molding process produces a plastic part with a skin and core laminated structure. The skin material is injected into the mold, followed by the core material. Next, the machine injects skin material again to encapsulate the core. This means that a product can be made with your desired appearance on the outer skin material.

Co-injection molding is widely used to enable regrind and reprocessed materials as the second-shot core material while bringing environmental benefits and reducing costs. The process also improves the strength and performance of high-impact plastics when used as core materials.

However, this process comes with several challenges. First, building a co-injection machine requires a hot runner system, control valve gates, and two barrels. These components cost more than a traditional injection molding machine. An even bigger problem is determining the optimal ratio of skin material to core material and track interface shape. There is also the matter of distributing individual components at any time and location in a cavity, which is critical for mechanical properties.

Co-Injection provides powerful modeling solutions that help you gain insight into critical characteristics of the process, such as material interface and distribution. It also optimizes your plastic manufacturing processes and lets you save on development costs.

Moldex3D Gas-Assisted Injection Molding Analysis

Moldex3D Gas-Assisted Injection Molding (GAIM) visualizes 3D flow behaviors when gas is injected into the cavity through the melt entrance or specific gas entrances. This software product predicts fingering effects and other gas injection molding issues to help you investigate the real production process and increase manufacturability.

It also simulates the gas-assisted injection molding process when gas is injected into the polymer melt through a runner or other designed gas channels. The gas cores out a network of hollow channels throughout the mold cavity and drives the polymer melt to complete the filling process.

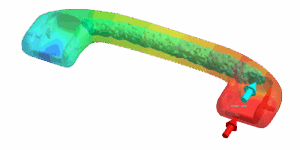

In addition, GAIM visualizes 3D gas penetration behaviors inside the cavity. This lets you evaluate the amounts of polymer injected into the cavity and optimize the size and placement of gas channels.

Capabilities

  • Lowers filling and packing pressure and clamping tonnage
  • Prevents sink marks and warpage
  • Reduces residual stress
  • Saves significant weight
  • Shortens cooling time

Results

  • Support for cooling and warpage simulations
  • High mesh resolution for accurate analysis results
  • Dedicated function for specifying the gas injected from single or multiple entrances or the melt entrance
  • Dedicated function for stepping or poly-lining gas pressure control settings during the molding process
  • Animation function for checking the filling dynamics
  • Support for parallel processing to speed up calculation time
